현미경 과학 연구를위한 XCAM1080PHD HDMI 현미경 카메라 WIFI 카메라 CMOS SONY 센서
    판매가격 : 1,139,000 원
    상품번호 :441919
    해외배송 : 국제항공운송비 무료적용상품
    적립금액 :배송완료후 2%적립 [후기작성시 1%추가적립]
    상품상태 :신상품
    원산지명 :중국
    제조업체 :by OEM
    구매수량 :
    총 금액 :



    * 위의 탭에서 언어를 선택하시면 원본 또는 번역된 내용을 보실수 있습니다.*
                 inch         =  cm               파운드(lb)  =  킬로그램(kg)

    상품상세정보
    • Magnification Ratio: 500X & Under
    • Model Number: XCAM1080PHD
    • Brand Name: AMDSP
    • Theory: Video Microscope
    • 상세정보: Digital,High Definition
    • Material: Aluminum
    • Drawtube: Trinocular
    • Sensor: Sony IMX185(C)
    • Size: 1/1.9''(7.2x4.5)
    • Pixel: 3.75*3.75
    • FPS/Resolution: 60/1920*1080 (HDMI) 25/1920x1028 (WIFI)
    번역및 기능문의는 상품문의 게시판을 이용하세요.

    XCAM1080PHB/PHD’s Basic Characteristic

    XCAM1080PHB/PHD is a multiple interfaces (HDMI+WiFi+SD card, so X here means multiple interfaces) CMOS camera and it adopts ultra-high performance Sony CMOS sensor as the image-picking device. HDMI+WiFi are used as the data transfer interface to HDMI display or computer.

    For HDMI output, The XCamView will be loaded and a camera control panel and toolbar are overlaid on the HDMI screen, in this case, the USB mouse can be used to set the camera, browse and compare the captured image, play the video ital.

    For WiFi output, unplug the mouse and plug in the USB WiFi adapter, connect the computer WiFi to the camera, then the video stream can be transfer to computer with the advanced software ToupView. With ToupView, you can control the camera, process the image as ToupTek\'s other USB series camera.

    XCAM1080PHA1



    The XCAM1080PHB/PHD’s basic characteristic is as follows:

    1)   All in 1( HDMI+WiFi) C-mount camera with Sony high sensitivity CMOS sensor;

    2)   For HDMI application, with built-in multiple-language XCamView software. The camera characteristic can be controlled by XCamView through the USB mouse. The other basic processing and choosing can also be realized by the XCamView;

    3)   1920 × 1080 (1080P) resolutions to match the current high-definition displayer on the market; Support plug and play application;

    4)   For HDMI application, 5.04M resolution image(2592*1944 XCAM1080PHB) or 2.0M resolution image(1920*1080 XCAM1080PHD) can be captured and saved for browsing; For video, 1080P video stream(asf format) can be captured and saved;

    5)   With the USB WiFi adapter, the XCAM1080PHB/PHD can be used as WiFi camera, the ToupView/ToupLite advanced image processing software is used to display the video and capture image. support plug and play application;

    6)   Ultra-Fine Color Engine with perfect color reproduction capability(WiFi);

    7)   With advanced video & image processing application ToupView, which including professional image processing such as 2D measurement, HDR, image stitching, EDF(Extended Depth of Focus), image segmentation & count, image stacking, color composite and denoising(USB);

    8)   XCAM1080PHB/PHD can meet various applications and can be widely used in industrial inspection, education and research, materials analysis, precision measurement, medical analyses etc.



    The possible applications of XCAM1080PHB/PHD are as follows:

    1)   Scientific research, education (teaching, demonstration and academic exchanges);

    2)   Digital laboratory, medical research;

    3)   Industrial visual (PCB examination, IC quality control);

    4)   Medical treatment (pathological observation);

    5)   Food (microbial colony observation and counting);

    6)   Aerospace, military (high sophisticated weapons);



    XCAM1080PHD Datasheet

    Order Code

    Sensor & Size(mm)

    Pixel(μm)

    G Sensitivity

    Dark Signal

    FPS/Resolution

    Binning

    Exposure

    XCAM1080PHD

    XP1080D

    1080P/2M/Sony IMX185(C)

    1/1.9"(7.20x4.05)

    3.75x3.75

    1120mv with 1/30s

    0.15mv with 1/30s

    60/1920*1080
    (HDMI)

    25/1920x1080
    (WiFi)

    1x1

    0.06ms~918ms



    C: Color; M: Monochrome;



    Interface & Button Functions

    PHA1

    PHA2



    USB

    USB Mouse/USB WiFi Adapter

    HDMI

    HDMI Output

    DC12V

    12V Power in

    SD

    SD Card Slot

    ON/OFF

    Power On/off Switch

    LED

    Power Indicator

    Other Specification for HDMI Output

    UI Operation

    With USB Mouse to Operate on the embedded XCamView

    Image Capture

    JPEG Format with 5M Resolution (2592*1944) in SD Card(8G) (XAM1080PHB)

    JPEG Format with 2M Resolution in SD Card (XCAM1080PHD)

    Video Record

    ASF Format 1080P 30fps in SD Card(8G)

    Camera Control Panel

    Including Exposure, Gain, White Balance, Color Adjustment, Sharpness and Denoising Control

    Toolbar

    Including Zoom, Mirror, Comparison, Freeze, Cross, Browser Function, Muti-language and XCamView Version Information

    Other Specification for WiFi Output

    UI Operation

    ToupView or ToupLite on Windows/Linux/OSX/Android Platform

    WiFi Performance

    802.11n 150Mbps; RF Power 20dBm(Maximum)

    Maximum Connected Devices

    3~6(According to the Environment and Connection Distance)

    White Balance

    Auto White Balance

    Color Technique

    Ultra-FineTM Color Engine (WiFi)

    Capture/Control API

    Standard SDK for Windows/Linux/Mac(WiFi)

    Recording System

    Still Picture or Movie (WiFi)

    Software Environment (for USB2.0 Connection)

    Operating System

    Microsoft® Windows® XP / Vista / 7 / 8 / 8.1/10(32 & 64 bit)

    OSx(Mac OS X)

    Linux

    PC Requirements

    CPU: Equal to Intel Core2 2.8GHz or Higher

    Memory:4GB or More

    USB Port:USB2.0 High-speed Port(As Power Only, not as the USB Data Transfer)

    Display:19” or Larger

    CD-ROM

    Operating Environment

    Operating Temperature(in Centidegree)

    -10~ 50

    Storage Temperature(in Centidegree)

    -20~ 60

    Operating Humidity

    30~80%RH

    Storage Humidity

    10~60%RH

    Power Supply

    DC 12V/1A Adapter





    XCAM1080PHB/PHD and Microscope

    XCAM1080PHA6

    XCAM1080PHB/PHD+ Microscope+Display

    XCAM1080PHA7

    XCamView UI for Mouse Control



    XCAM1080PHB/PHD

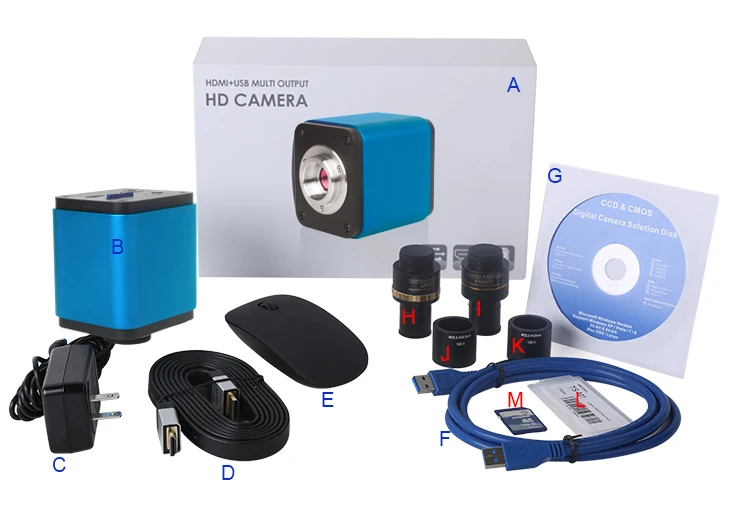

    Packing Information for XCAM1080PHB/PHD

    XCAM1080PHA_P_Info



    Standard Packing List

    A

    Gift box : L:25.5cm W:17.0cm H:9.0cm (1pcs, 1.43Kg/ box)

    B

    XCAM1080PHB or XCAM1080PHD

    C

    Power Adapter: Input: AC 100~240V 50Hz/60Hz, Output: DC 12V 1A

    American standard: Model: GS12U12-P1I 12W/12V/1A: UL/CUL/BSMI/CB/FCC

    EMI Standard:EN55022,EN61204-3, EN61000-3-2,-3, FCC Part 152 class B, BSMI CNS14338

    EMS Standard:EN61000-4-2,3,4,5,6,8,11,EN61204-3,Class A Light Industry Standard

    European standard:Model:GS12E12-P1I 12W/12V/1A; TUV(GS)/CB/CE/ROHS

    EMI Standard:EN55022,EN61204-3, EN61000-3-2,-3, FCC Part 152 class B, BSMI CNS14338

    EMS Standard:EN61000-4-2,3,4,5,6,8,11,EN61204-3,Class A Light Industry Standard

    D

    HDMI Cable

    E

    USB Mouse

    F

    Wireless network adapter with USB interface

    G

    CD (Driver & utilities software, Ø12cm)

    Optional Accessory

    H

    Adjustable lens adapter

    C-Mount to Dia.23.2mm Eyepiece Tube
    (Please choose 1 of them for your microscope)

    108001/AMA037
    108002/AMA050
    108003/AMA075

    C-Mount to Dia.31.75mm Eyepiece Tube
    (Please choose 1 of them for your telescope)

    108008/ATA037
    108009/ATA050
    108010/ATA075

    I

    Fixed lens Adapter

    C-Mount to Dia.23.2mm Eyepiece Tube
    (Please choose 1 of them for your microscope)

    108005/FMA037
    108006/FMA050
    108007/FMA075

    C-Mount to Dia.31.75mm Eyepiece Tube
    (Please choose 1 of them for your telescope)

    108011/FTA037
    108012/FTA050
    108013/FTA075

    Note: For H and I optional items, please specify your camera type(C-mount, microscope camera or telescope camera), ToupTek engineer will help you to determine the right microscope or telescope camera adapter for your application;

    J

    108015(Dia.23.2mm to 30.0mm Ring)/Adapter rings for 30mm eyepiece tube

    K

    108016(Dia.23.2mm to 30.5mm Ring)/ Adapter rings for 30.5mm eyepiece tube

    L

    Calibration kit

    106011/TS-M1(X=0.01mm/100Div.);
    106012/TS-M2(X,Y=0.01mm/100Div.);
    106013/TS-M7(X=0.01mm/100Div., 0.10mm/100Div.)

    M

    SD Card(4G or 8G)

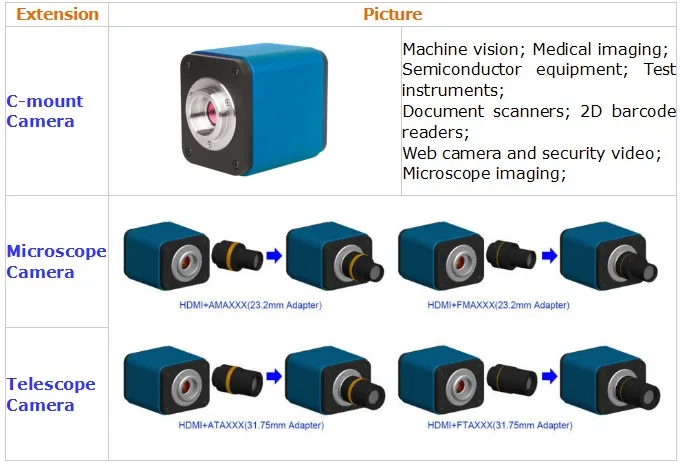

    Extension of XCAM1080PHB/PHD with Microscope or Telescope Adapter



    Extension






    ※ 옵션입력창이 없을경우 배송시메모란에 기재하시면 됩니다.
    • Unit Type: piece
    • Package Weight: 2.0kg (4.41lb.)
    • Package Size: 20cm x 15cm x 15cm (7.87in x 5.91in x 5.91in)
