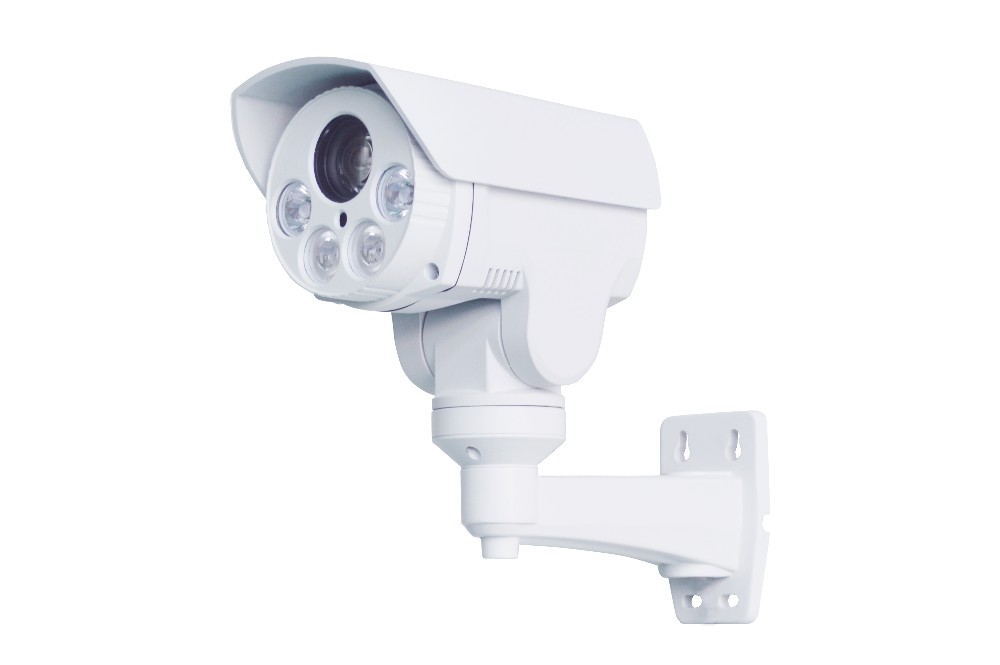

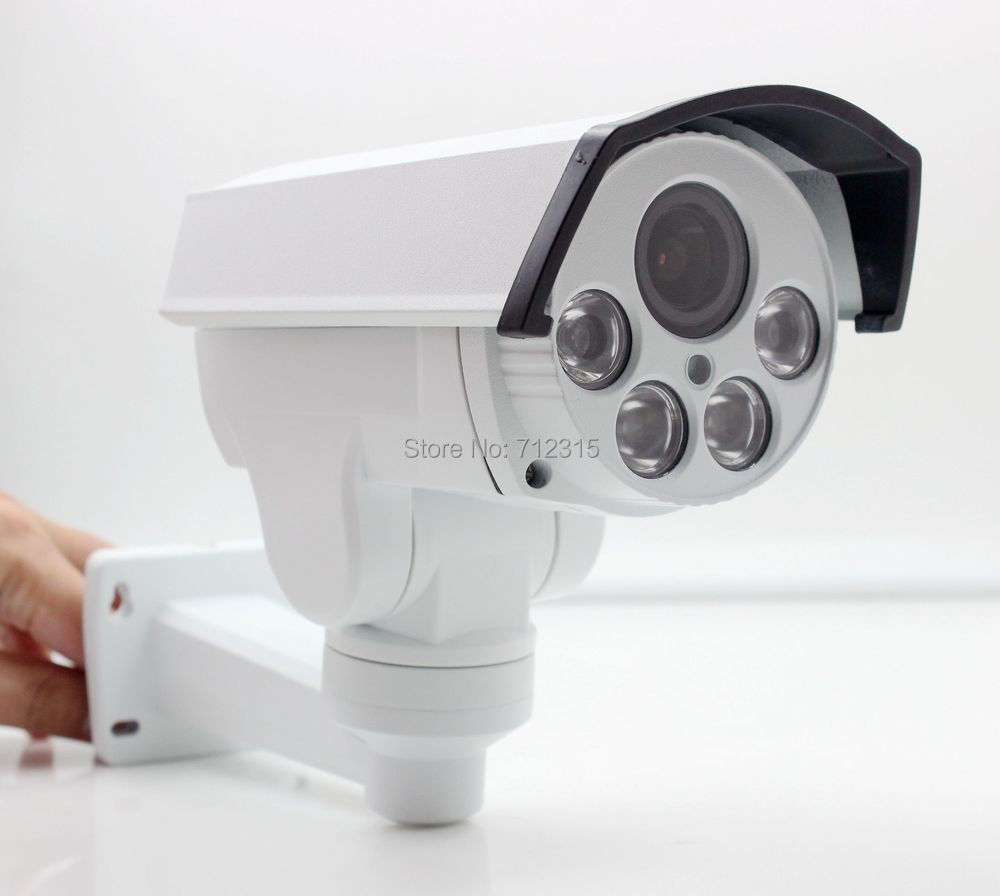

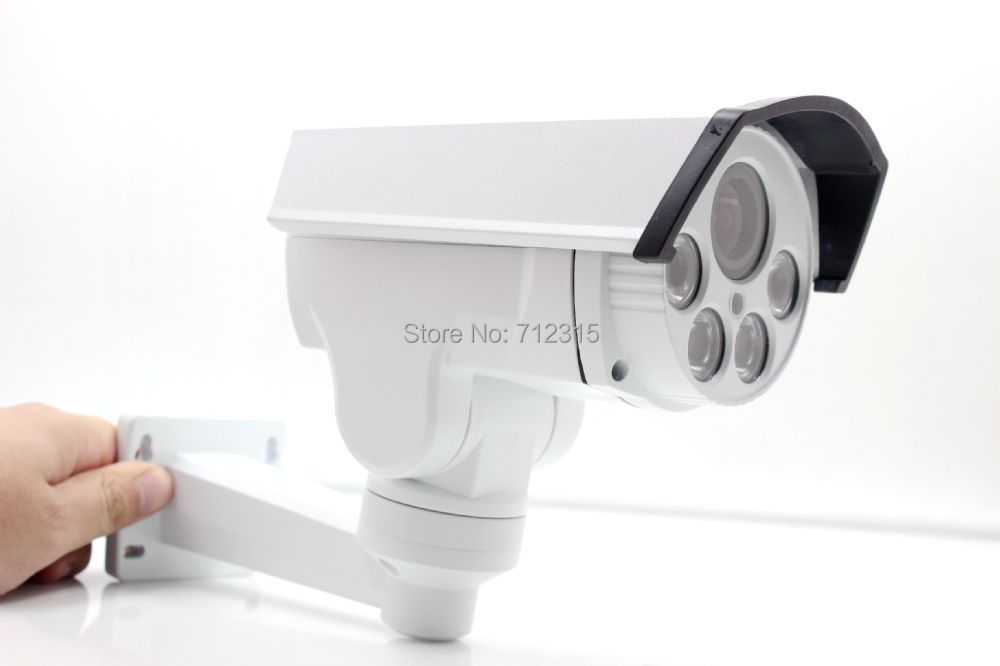

    [1080P PTZ]4 배 광학 팬 틸트 자동 줌 2.8-12mm 소니의 IMX222 New 2.0MP FULL HD IP 배열 ONVIF P2P 나이트 비전 카메라 CCT-V 홈 보안
    판매가격 : 424,300 원
    상품번호 :344795
    해외배송 : 국제항공운송비 무료적용상품
    적립금액 :배송완료후 2%적립 [후기작성시 1%추가적립]
    상품상태 :신상품
    원산지명 :중국
    제조업체 :by OEM
    구매수량 :
    총 금액 :



    * 위의 탭에서 언어를 선택하시면 원본 또는 번역된 내용을 보실수 있습니다.*
                 inch         =  cm               파운드(lb)  =  킬로그램(kg)

    상품상세정보
    • Dimensions (L x W x D)(mm): mm*mm
    • Alarm Action: FTP Photo,Email Photo
    • Technology: Infrared
    • IR Distance(m): AROUND 60M
    • Minimum Illumination(Lux): 0.01
    • Sensor: CMOS
    • Supported Mobile Systems: iPhone OS,Android
    • Brand Name: MISECU
    • Supported Operating Systems: Windows 7,Windows 8,Windows XP
    • Wall Bracket: Side
    • Video Compression Format: H.264
    • Model Number: PTZ635-4X20
    • High Definition: 1080P(Full-HD)
    • Special 상세정보: Waterproof / Weatherproof
    • Color: White
    • is_customized: No
    • Power Supply(V): DC12V
    • Type: IP Camera
    • Sensor Brand: SONY
    • Installation: Ceiling
    • Connectivity: IP/Network Wired
    • Power Consumption(W): 6W-7W
    • Style: Bullet Camera
    • Network Interface: RJ-45 10/100Mb Ethernet Slot
    • A-udio Output: NO

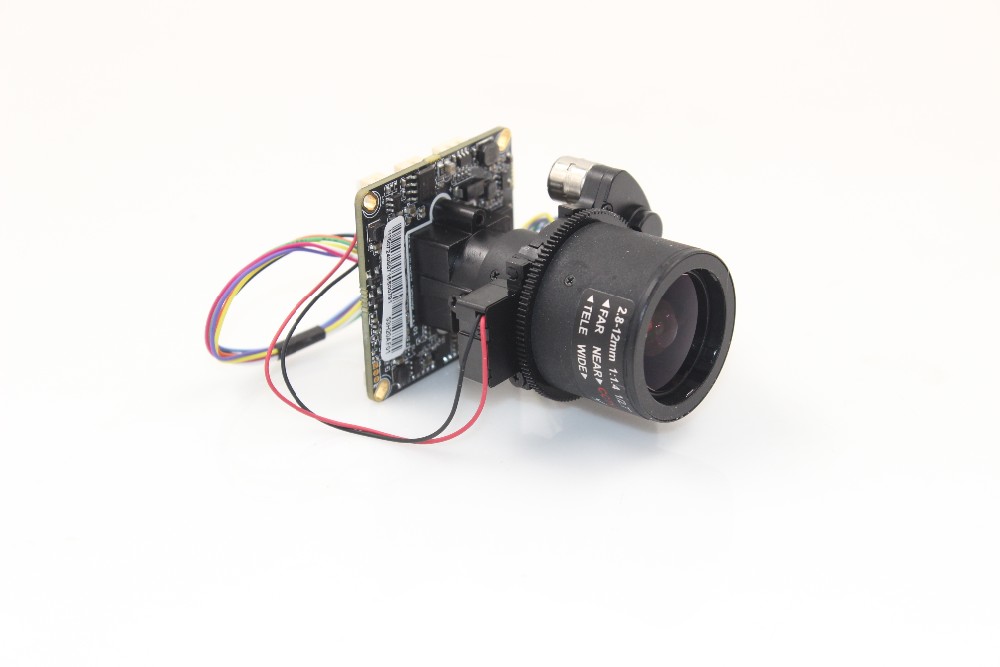

    • Lens (mm): 2.8-12mm Auto Zoom
    • Rotation Degree: Pan: 0-250° continuous rotation; Tilt: -10°~55° auto flip
    • Image Output: 1920 *1080P full HD
    • Electronic shutter: 1/25s ~ 1/100000s
    • Specialty: Pan Tilt Auto Zoom lens 2.8-12mm Outdoor/Indoor
    • Type: Bullet Infrared White Color
    • Leds: 4 pcs Array IR CUT

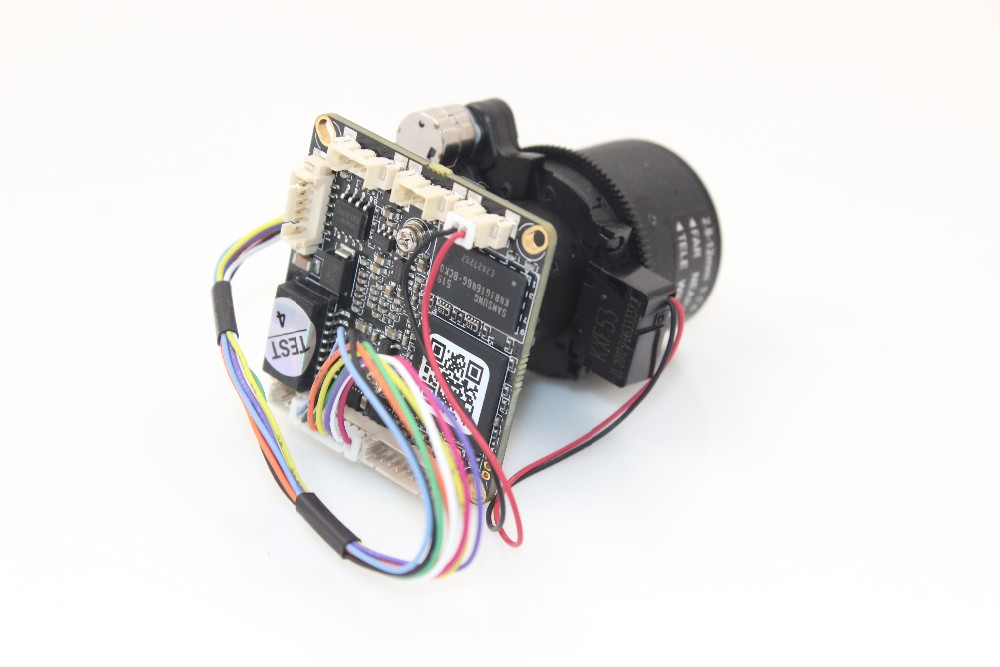

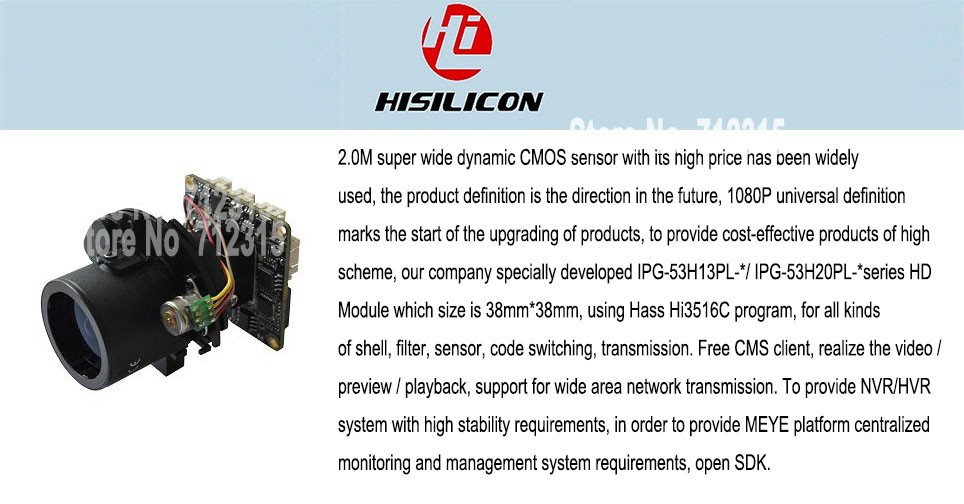

    • Chip: HI3516C+IMX222
    • Technology: super wide dynamic
    • 상세정보: Waterproof ONVIF 2.0 P2P
    • Night Vision: 50-80m ( approx )
    번역및 기능문의는 상품문의게시판을 이용하세요.

    TOP Picks



    To get a $16 coupon right now! Exclusively usable on 00:00-23:59 on 11.11 only!

    AliExpress Selected Coupon accepted by MISECU Official Store: $2 coupon for $19 orders.

    Coupon:

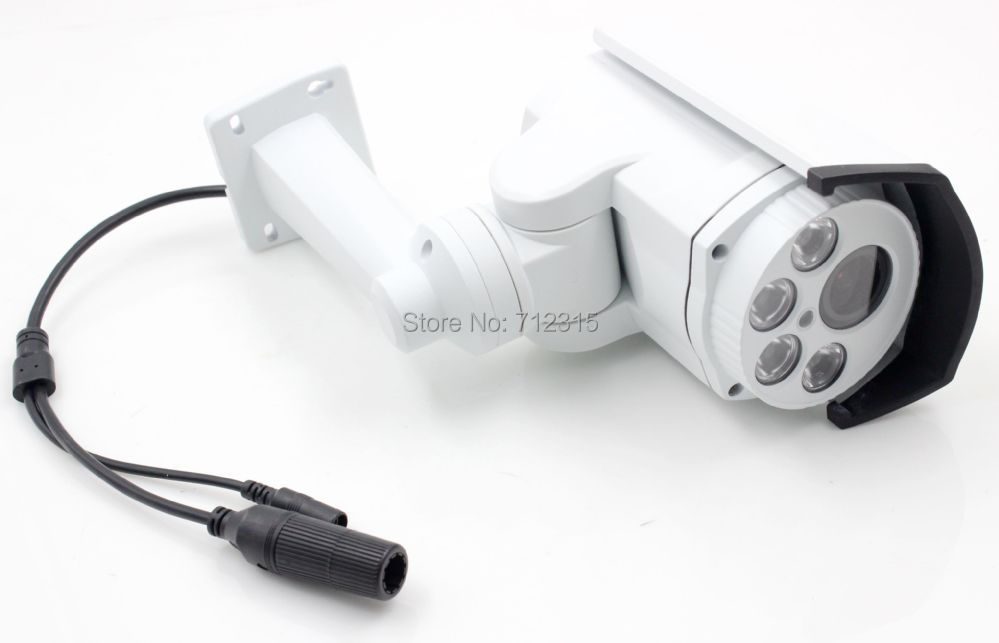

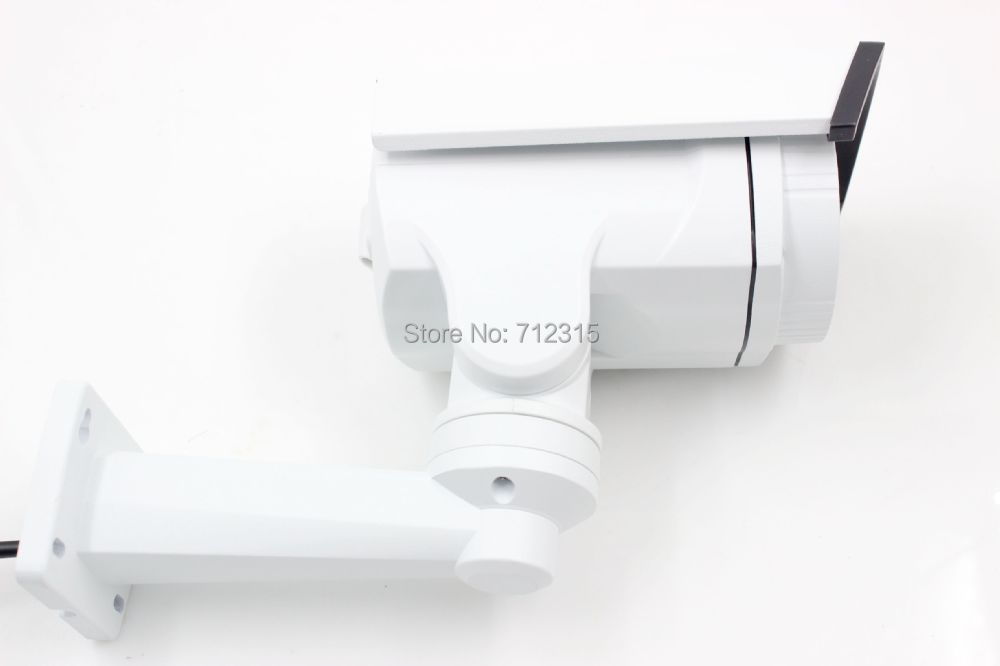

    4X Optical Pan Tilt Auto Zoom lens 2.8-12mm New 2.0MP FULL HD IP Array Onvif P2P NIght Vision Camera Camera cctv home security

    Overview :



    Focus lenght

     2.8-12 mm

    Day/night mode

    Automatic /multicolour /monochrome

    Focus mode

    Automatic/ manual

    Noise-signal ratio

    2D/3D-DNR

    Back light compensation

    Off/on

    White Balance

    Automatic/ manual

    Electronic shutter

    1/25s ~ 1/100000s

    Gain control

    Automatic/ manual

    Min illumination

    0lux (IR ON)

    Pan speed : 0.5°-12° /s

    Tilt speed : 0.5°-10° /s





    Network parameter:



    Max image

    1920*1080

     Heartbeat function

     Support

    Security mechanism

    Password protection, multi user access is controlled

    Communications protocol

    TCP/IP,HTTP,DHCP,DNS,DDNS,RTP,RTSP,PPPoE,SMTP,NTP,UPnP,SNMP,FTP,802.1x,QoS,HTTPS,IPv6

    (SIP,SRTP,optical), ONVIF

    Double stream

     Support

    Interface

     One network interface, one power input



    Infrared lamp



    Infrared lamp





    IR View Distance

    4 high power array LEDs with IR

    IR lamp control

    60-80 meters



    IR lamp consumption

    Automatic  /manual / camera



    Bullet IP Camera



    Pan speed

    Pan speed:0.5°~12°/s,speed is settable;pan preset speed:20°/s

    Tilt speed

    Tilt speed:0.5°~10°/s ,speed is settable;Tilt preset speed:20°/s

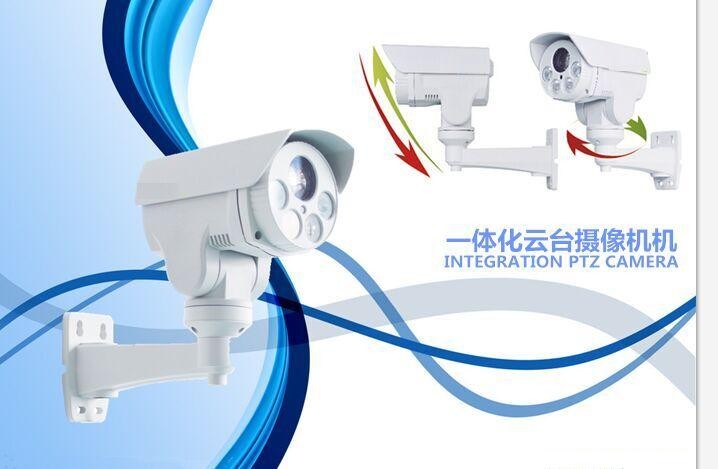

    Rotation

    Pan: 0-250° continuous rotation; Tilt: -10°~55° auto flip

     Preset

    256 presets ( Chinese title)

    Auto Scan

    8 groups, settable boundaries and scan speed

    Auto Cruise

    8 groups, each with 32 presets with settable time interval

    Pattern Tour

    4 groups, each with 500 instructions

    Video analysis

    Support

    Auto tracking

    Not Support

    Heat dispersion structure

    Out Cool Air Circulation to Sink the Heat Technology

    Supply voltage

    DC12V±10%  1.5-2A

    Levels of protection

    IP66/ level 2  lightning protection,4000V prevent  thunderbolt surges design

    Working temperature

    -30-+55

    Working  humidity

    <90%,No condensation

    Consumption

    18W Max

    Weight

    1.1 Kg (approx)

    Accessory

     Wall-mount , bracket



    Main features:



    1: The Highly power  array LEDs with IR range up to 60-80 meters

    2: Built-in digital HD module,the image can up to 1080 p.

    3  Built-in camera : 4 X optical zoom.

    4: Infrared light control software, suitable for various  occasions

    5: Automatic defrost and defog function( manual operation)

    6: IP66/ level 2  lightning protection,4000V prevent  thunderbolt surges design.

    7:2.0 Megapixel HD IR Bullet outdoor indoor Onvif  IP Camera ,Auto zoom 2.8-12 mm ,new

    8:super wide dynamic CMOS sensor

    9:Dual H.264,dual-stream enconding

    10:1920*1080 ( Main Stream )

    day

    11.11 global shopping festival note to all my valued clients (from MISECU , Vivi):

    click at main page to see all the surprise

    111

    MISECU Official Store,as top brands in CCT-V Surveillance field on Kimsmall,you may enter my store in so many ways:

    1st way, in Kimsmall main page,
    and choose the"Home Improvement & Security"channel, you will see MISECU Official Store in "TOP BRANDS"lists.  top MISECU


    2nd way , input "MISECU" in searching blank,"MISECU Official Store"on top , that is my store .
    QQ20161029095958


    635Z-20635ZZ635-APP

    008009



     HTB1.y_ZHVXXXXaxaXXXq6xXFXXX2



    How We Pack :

    1x 1080P HD IP camera PTZ Auto zoom 2.8-12mm lens

    Screw



    H.264

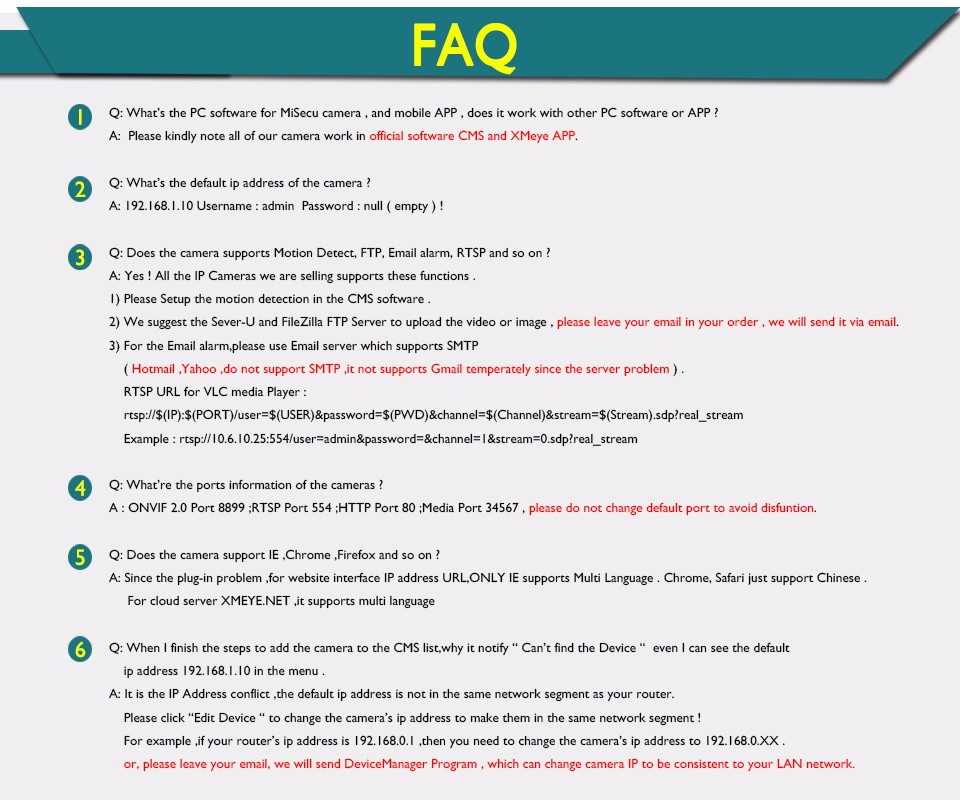

    FAQ

    IE Cloud Security-Video Management System make it easy to monitor what you care no matter where you are!





    12345678910



    newest 6

    Plug and Play

    High Resistance

    IP Camera Monitoring System

    (D8(IMD7MCAQEUB062[Q(~OQ(11CRV60PP{`]7V13X{WPQ

    HTB1GHjJIXXXXXaPXFXXq6xXFXXXaHTB14m2UIXXXXXaoXpXXq6xXFXXXe

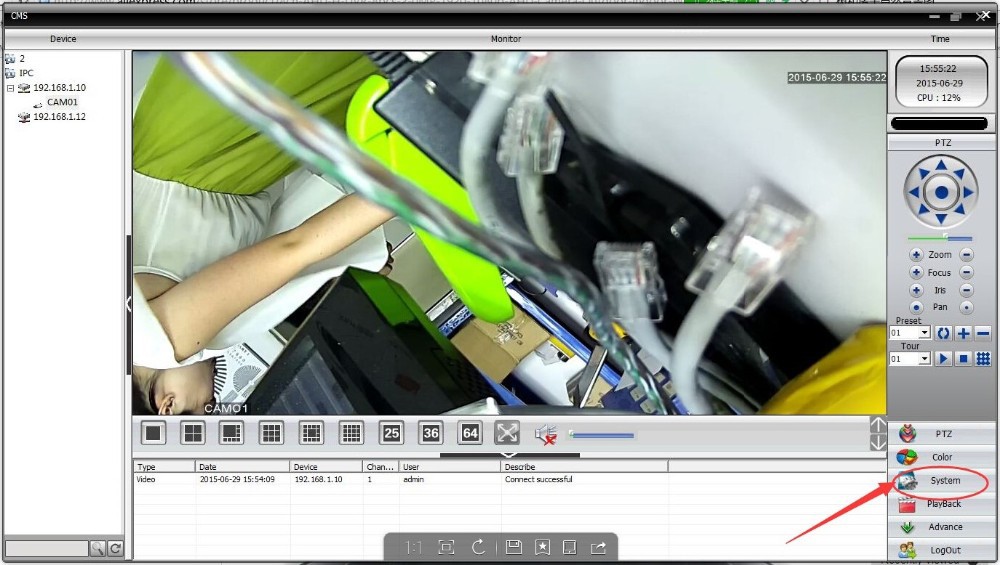

    How to reset the camera configuration:

    reset 1reset 2reset 3reset 4

    MISECU focuses on high-qualified security products design, production, manufacture and sales. Over the years focused on security products, our video surveillance systems manufacturing, we developed a number of wholesalers and distributors , and countless retailers in different countries.We provide professional OEM & ODM services for customers, looking forward to more partners to work together with MISECU to create a brighter future.

    Please feel free to contact us through AliExpress message center or Order page for any problem (9:00am to 18:00pm , except Sunday) email to phoebe(at)tinosec(dot)com
    Our customer service and tech support will do our best to help you out.

    1. WORLDWIDE SHIPPING. (Except some countries and APO/FPO)

    2. Orders processed timely after the payment verification.

    3. We only ship to confirmed order addresses. Your order address MUST MATCH your Shipping address.

    4. The images shown are not the actual item and are for your reference only.

    5. SERVICE TRANSIT TIME is provided by the carrier and excludes weekends and holidays. Transit times may vary, particularly during the holiday season.

    6. If you have not received your shipment within estimated time of arrival, please contact us. We will track the shipment and get back to you as soon as possible with a reply. Our goal is customer satisfaction!

    7. Due to stock status and time differences, we will choose to ship your item from our first available warehouse for fast delivery.

    8. Import duties , taxes and charges are not included in the item price or shipping charges .

    These charges are the buyers\' responsibility. Please check with your country\'s customs office to determine what these additional costs will be prior to ordering .

    All of the items in MISECU at big promotion all through the year(365 days) , please just select what you need and what you like , and we have extra coupons or gift from time to time .Add it to wish store to get connected to more surprise!

    1 year warranty .During this period, we will repair or replace a defective product or part with a new or refurbished item (not including artificially defect). The user

    is responsible for all transportation and insurance charges for the product to the our facility.

    Products may be returned for refund or replacement within 30 days of the purchase date. Returned
    merchandise must be unused, in original packaging and include all accessories. Shipping costs are

    non-refundable.Currently , buyers can pay using Boleto , Visa, MasterCard , QIWI , Western Union , Maestro DEBIT CARD , WebMoney and bank transfer . More payment options will be available on Kimsmall in the coming future.We maintain high standards of excellence and strive for 100% customer satisfaction , and only accept 5 star feedback! Feedback is very important We request that you contact us immediately BEFORE you give us neutral or negative feedback, so that we can satisfactorily address your concerns. Communication would solve 99.99% problems .

    It is impossible to address issues if we do not know about them!




    ※ 옵션입력창이 없을경우 배송시메모란에 기재하시면 됩니다.
    • Unit Type: piece
    • Package Weight: 1.1kg (2.43lb.)
    • Package Size: 30cm x 20cm x 20cm (11.81in x 7.87in x 7.87in)
