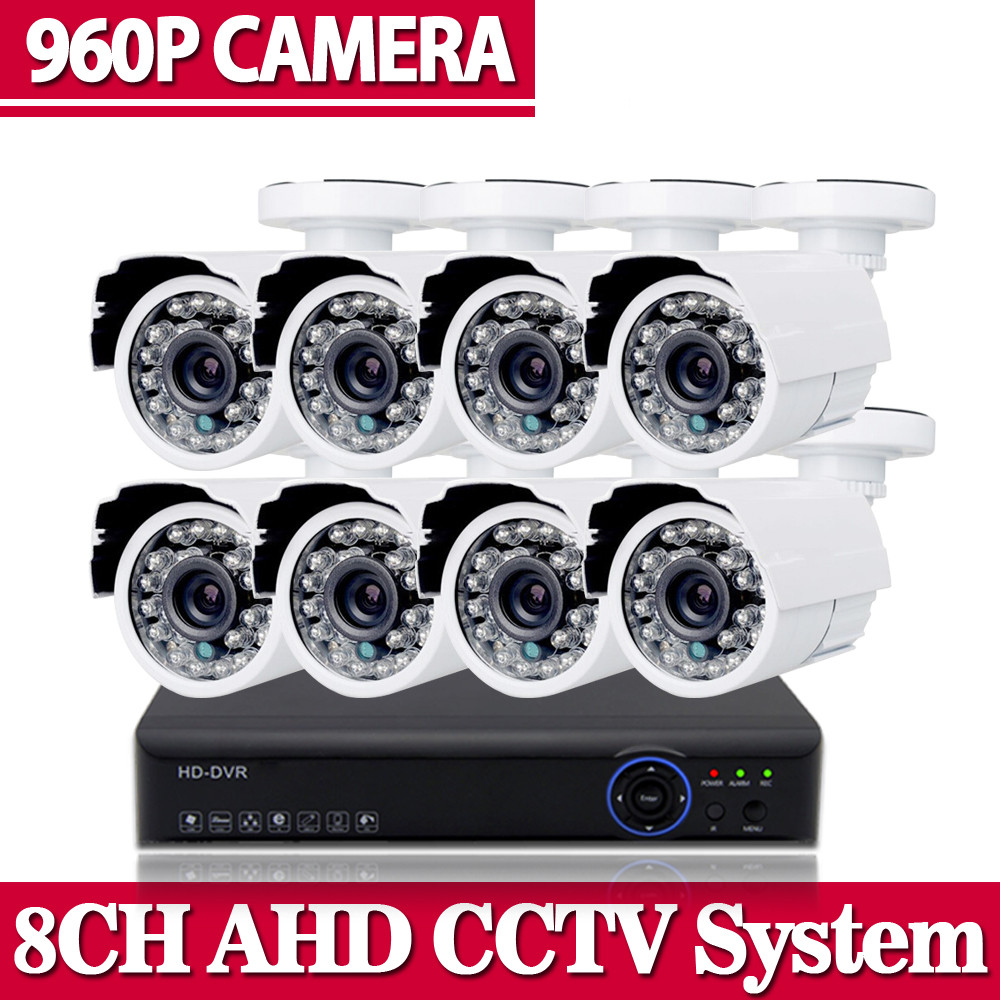

    홈 HD 130 만 화소 Vide-o 감시 CCT-V 시스템 HDMI 8 채널 풀 HD 960P 보안 카메라 시스템 IR 야외 감시 키트없이 HDD
    판매가격 : 1,053,600 원
    상품번호 :343973
    해외배송 : 국제항공운송비 무료적용상품
    적립금액 :배송완료후 2%적립 [후기작성시 1%추가적립]
    상품상태 :신상품
    원산지명 :중국
    제조업체 :by OEM
    구매수량 :
    총 금액 :

    * 위의 탭에서 언어를 선택하시면 원본 또는 번역된 내용을 보실수 있습니다.*
                 inch         =  cm               파운드(lb)  =  킬로그램(kg)

    • Model Number: CA-960P-03XH
    • Brand Name: NINIVISION
    • Cable Length: 20m
    • Resolution: 960P
    • Video Resolution: 8CH AHD-NH 1080N
    • Power adapter: EU / US / UK / AU
    • AHD DVR Language: multi-language(English,Russian,Spanish etc...)
    • AHD DVR 상세정보: HDMI 1080P output / USB 3G and WIFI / P2P iCloud/ONVIF
    • AHD+DVR+HVR+NVR 5 in1: Connect AHD camera or analog camera or analog+IPC or only IPC
    • Remote View: Android, iPhone, iPad, Internet Explorer etc
    • Video: 8CH input/1CH VGA, 1CH HDMI 1080P output
    • A-udio: 4CH audio input,1CH audio output(RCA)
    • Horizontal Resolution: 1.3MP ,960P,2500T-VL,Night Vision,Waterproof,IR-CUT
    • Warranty: 3 years
    번역및 기능문의는 상품문의게시판을 이용하세요.

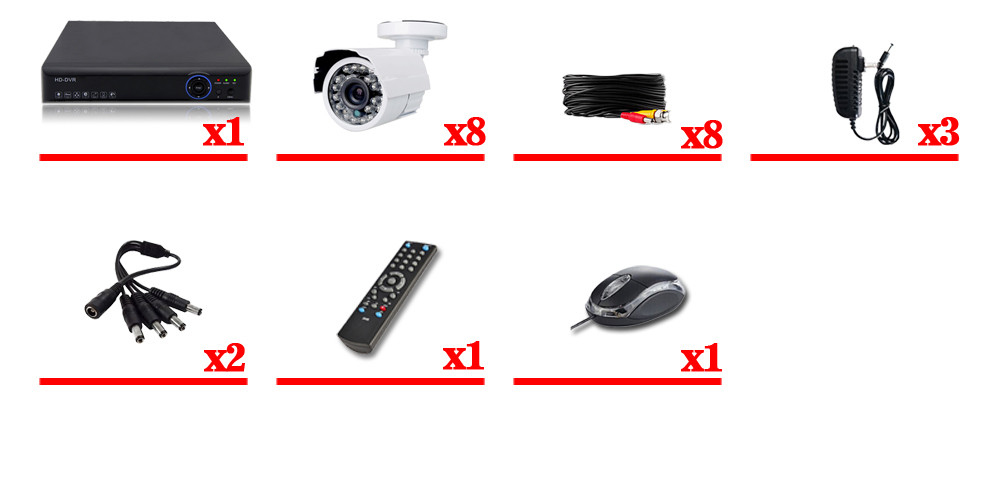

    • 1 X 8CH AHD 1080P HDMI DVR NVR HVR 3 IN 1 Network Digital Video Recorder
    •  8 x AHD 960P 1.3MP 1/3" inch indoor outdoor IR Day Night vision waterproof cameras
    • 8 X 65feet(20m) cctv video cable for camera
    • 2 x 12V/3000mA power adapter for cameras
    • 1 x 12V/2000mA power adapter for DVR
    • 2 X 1 to 4 power splitter cable
    • 1 X USB Mouse for DVR
    • 1 X Software CD for DVR
    • 1 X remote control for DVR
    • no Hard Disk included!!!!!

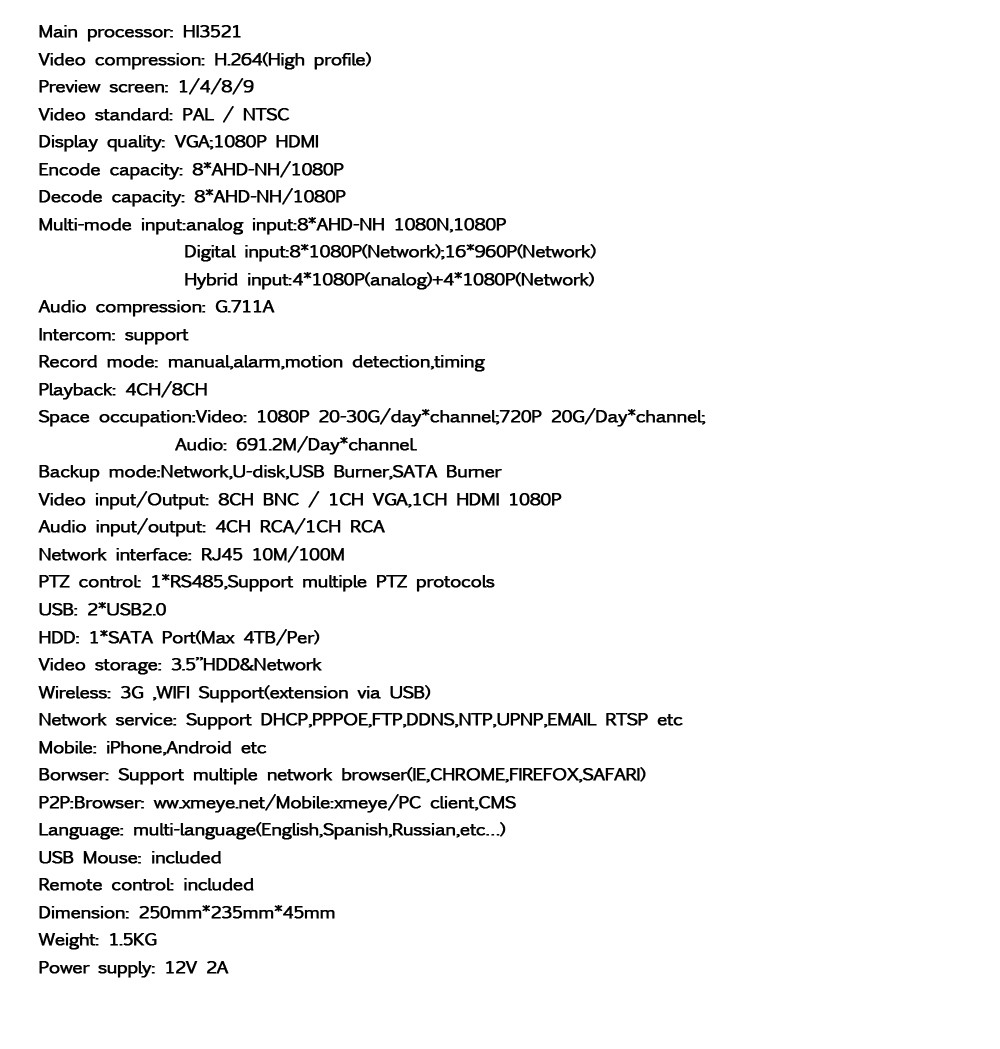

    8CH AHD -NH DVR System Support:   DVR / NVR / HVR 3 IN 1(AHD Camera/Analog Camera/IP Camera)


    1080P AHD-NH DVR compatible 720P, 960P, 1080P AHD cameras
    What is DVR /NVR /HVR 3 in 1?
    DVR:Digital Video Recorder.
    NVR:Network Video Recorder.
    HVR:High Definition / Hybrid Digital Video Recorder.
    This 3 in 1 DVR has mature technology of DVR as well as the high definition and network advantages of NVR.
    Save the huge cost when you want to upgrade the dvr system to be NVR!!!
    720P or 1080P IP Cameras supported(ONVIF Protocal)to get high definition image



    1080N AHD-NH DVR compatible 720P, 960P, 1080P AHD cameras

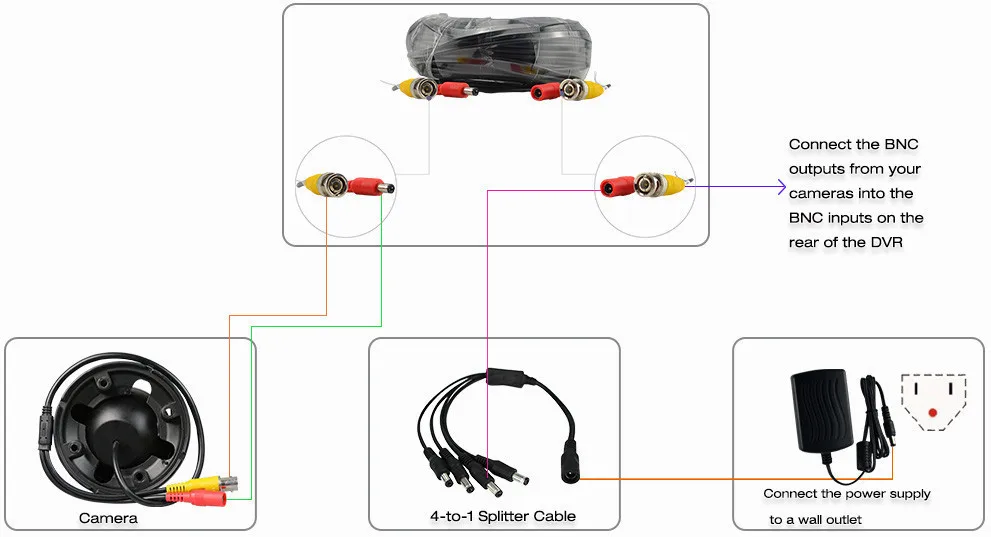

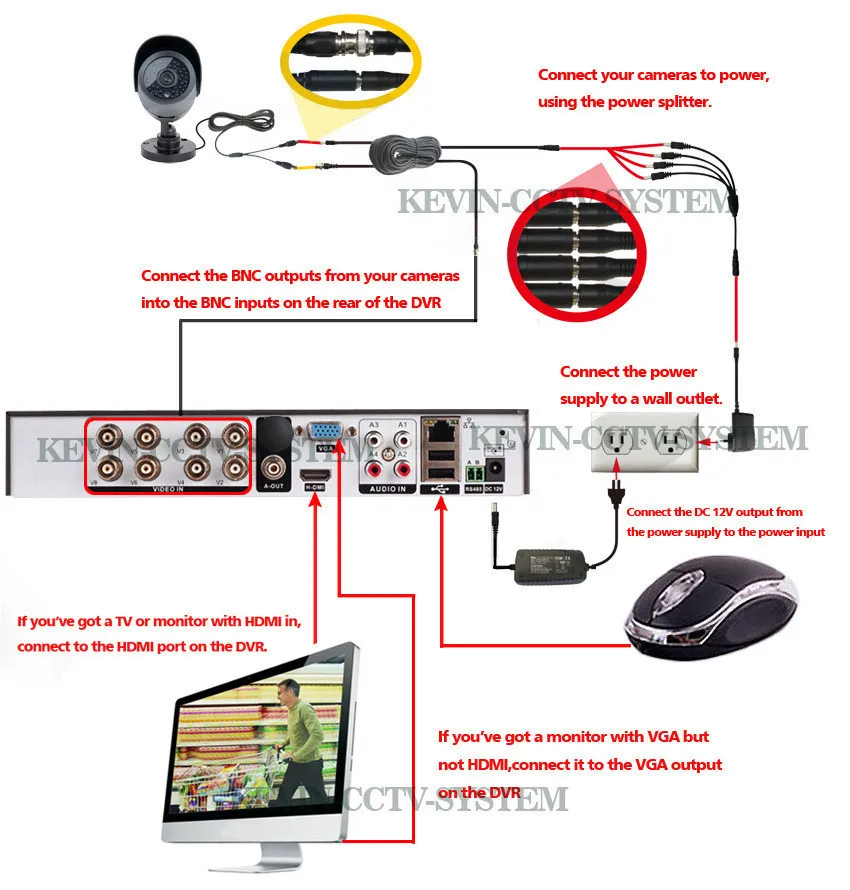

    1> Connect the Camera to DVR

    2> Connect the DVR to Network

    3> Scan QR for Mobile APP

    4> Scan QR for S/N via APP and Enjoy Live Viewing











    View on HDMI Monitor
    Easily display video through the HDMI port of your computer monitor to take full advantage of the security system\'s
    clarity. (HD Cable Not Included)
    View on T-V or PC Monitor
    For added convenience, the DVR also comes with VGA and BNC connections for standard resolution viewing options.
    VGA or BNC to RCA cable is not included.






    No matter day or night, 24 hour monitoring prevents theft.














    Multiple Defense Zones Motion Detection

    When subject appear in any defense zone the DVR will start recording

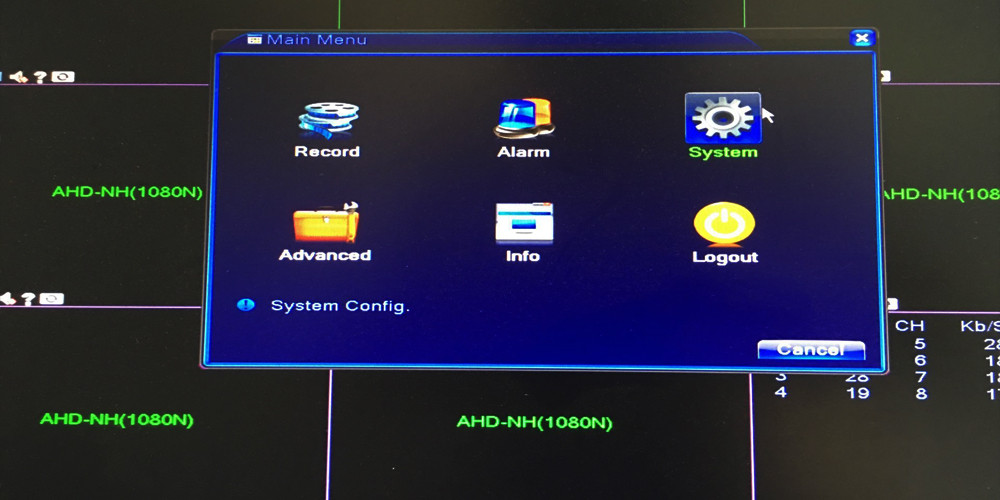

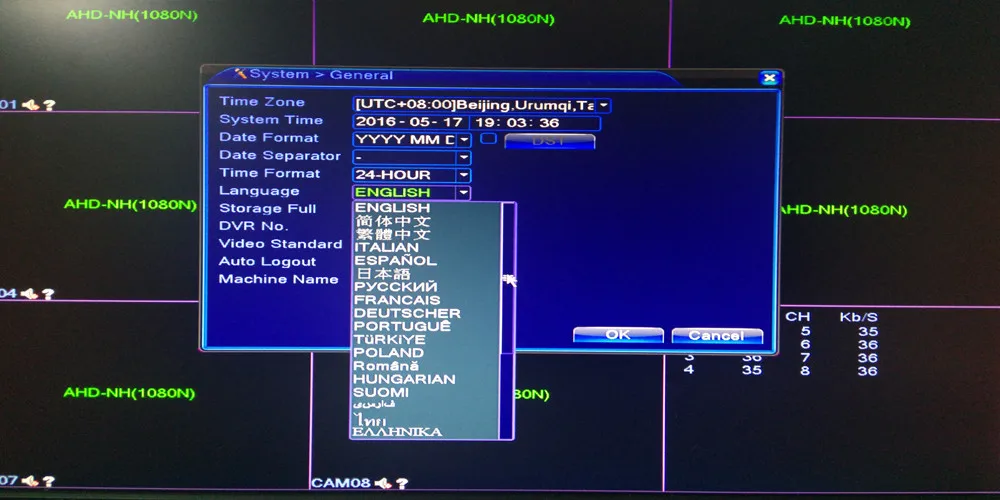

    Multi-language menus option up to 28 kinds of Language..

























    AHD (Analog High Definition) is a newly developed solution for transmitting full HD digital video in a surveillance system. The core concept of AHD is to deliver high definition video using digital T-V (DT-V) transmission. With AHD, high definition digital video can be transmitted easily over coaxial cables, twisted pairs, or simply over the air. Multiple 1080p30 and 1080p60 video streams can be easily transmitted using AHD over a single 5C2V/RG6 cable up to a length of 1000 meters without any repeater ( Up to 500 meters in case of 3C2V/RG59 ).


    In the world of analog T-V, The composite video baseband signal (CVBS) is the most commonly used signal format. Its popularity, ease of use, and robustness have made it an integral part of our lives. CVBS is in fact a de facto signal standard for analog video surveillance systems. As we bid farewell to analog T-V with worldwide analog switch-off (ASO) and move on to the age of digital T-V, digital technologies, such as DVB-T, ISDB-T, and ATSC, became popular and indispensable much like CVBS in the analog age. AHD leverages the extremely robust AV transmission capability of DT-V to easily and seamlessly upgrade an analog cctv surveillance system to digital full HD. It is expected AHD to become a de facto standard for digital video surveillance systems in the future.






    This camera needs to access AHD DVRCannot work with normal Analog DVRs.

    Best choice for project reconstruction!!You can upgrade an existing analog security system

        to 1.0MP/1.3MP/2.0MP HD camera system without changing cable routes.


        1) Applying high performance sensor, the image is clear and delicate

        2) Support IR-CUT dual filter switch, to achieve day and night monitoring, color is not partial or distortion

        3) Analog HD 960P @AHD video output

        4) Transmission distance up to 500 meters

        5) Support ultra low illumination

        6) Support automatic electronic shutter function, adapting different monitoring environment

        7) IR distance : 35 meters

        8) Camera lens choices : 3.6mm/6mm





    By using the high performance sensor, image is clear, delicate and high performance sensor, image is clear, delicate;

    Support IR-CUT dual filter switch, day and night to achieve monitoring, color is not distortion;

    Analog HD AHD video output;

    The transmission distance is 500 meters;

    Support automatic electronic shutter function, adapt to different monitoring environment;

    Waterproof design IP67, reliability;

    Million pixel HD video transmission of low cost, long distance, no delay, high efficiency, anti-jamming and easy to implement;

    Easy installation & operation, as same as analog CCT-V system

    More acceptable, lower price than analog surveilance system

    NO Delay, Real time Display.

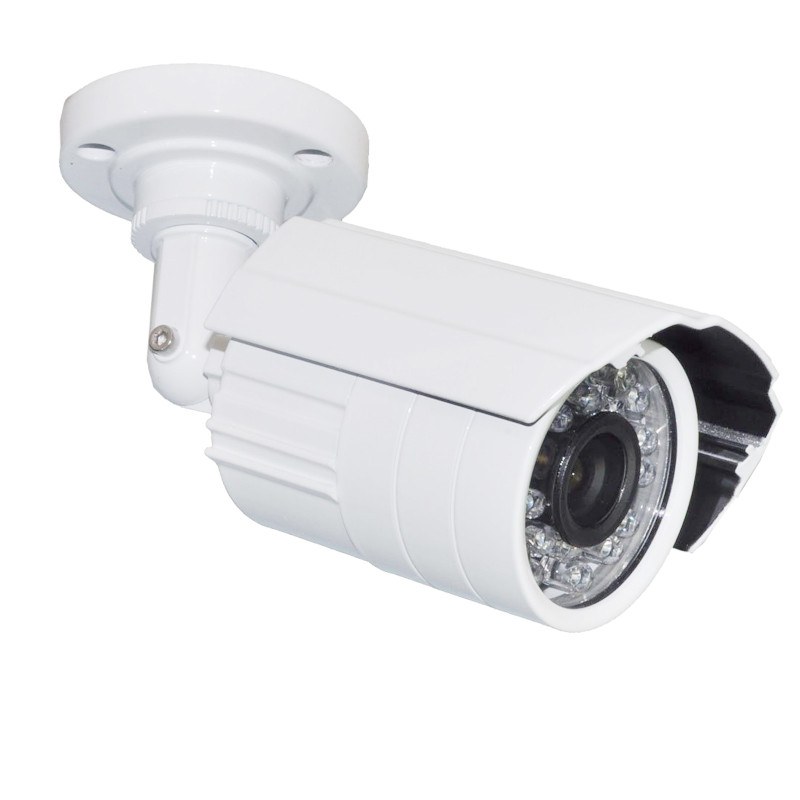

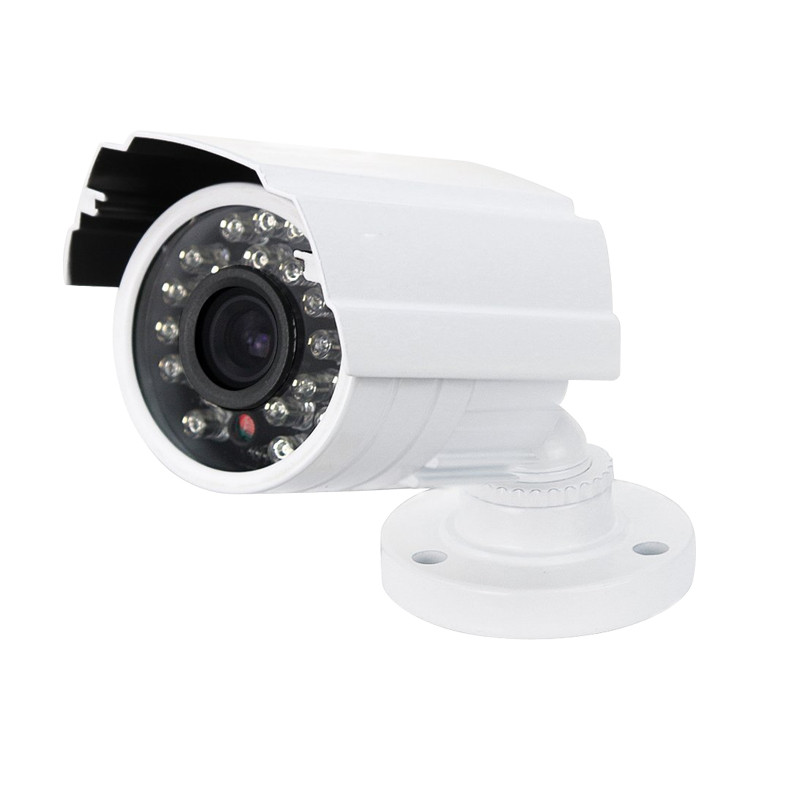

    Image sensor:1/3"inch CCD

    Video quality:960P/1.3MP/2500T-VL

    Lens:3.6mm lens

    Day/Night Mode:Color During day/switches to B&W at night


    Indoor / Outdoor:Suitable for Indoor or Outdoor use

    Operating Temperature:-25°F~122°F / -32°C ~50°C

    Operating Power:DC 12V


    Minimum Illumination: 0.0 Lux

    Body Construction:Bullet with Built-in Wall Mount

    Night Vision

    Distance:Up to 35m

    IR Cut Filter:yes

    Number of IR Lens:24pcs











    • IR Cut Filter Provides accurate color reproduction in all lighting conditions.





    • See more details with 3.6mm/6mm lens


    • Day & Night Monitoring with Built-in IR-Cut filter




    • IP66 Professional outdoor weatherproof



    SUNNY 16




    • Indoor/Outdoor Applicable(Camera performs both in outdoor and Indoor applications).






































    Note: If need us declare a low value of invoice for customs duty, pls leave us a message and tell us how much it’s better for your order, thanks for your cooperation.

    We will send the goods out within 1-3 working days after your payment is verify by Kimsmall.

    Currently, almost all products in our store are free shipping. Single camera via China post air mail as default. For DVR and security system, we support different logistics way to different countries. Please check the details on product description page.

    Tracking No. will be provided within 2 business days after the shipment.

    Buyers are responsible for additional COD charges, VAT, Brokerage Fees, Duty, or Customs Fees and Taxes.

    If the products are detained by customs after the shipment has been left the seller\'s country, the buyer is resonsible for clearance of the items.

    We strive our best to provide you the most reliable, affordable way of shipping service. But sometimes it is highly depended on the shipping courier and local customs. If you do not receive your item on time, please contact us immediately for further assistance.








    All merchandise we sell are in good quality and under strict examination before they are shipped out. We will try our best to avoid any quality problem.

    We warrants this product against defects in workmanship and material for a period of 3 years from it’s original purchase date.

    Any unit which proves defective during the warranty validation period will be repaired without charge for parts or replaced. The end user is responsible for all freight charges incurred to send the products to our repair center. The warranty does not cover any incidental, accidental or consequential damages arising from the use of. Any costs associated with the fitting or removal of this product by a tradesman or other person or any other costs associated with its use are the responsibility of the end user. This warranty applies to the original purchaser of the product only and is not transferable to any third party.


    Item could be returned for refund or replacement within 30 days from the date you receive it. Returned merchandise must be unused, in original packaging and include all accessories. Original shipping costs are not refundable.

    Before sending back any return items, please contact with us for a a Return Merchandise Authorization (RMA). Any products returned to seller without an RMA will be void, and we will be sent back to the buyer at his/her expense. Customer should be responsible for all charges of returning and reshipping.

    Return tracking number will be helpful to this process.

    Our tech support will deal with the repaired products upon receipt of your return parcel. Please feel free to contact us for any product or service issues







    We appreciate your business greatly. If you are satisfiated with our products and service, please leave us a Positive feedback and 5 Stars rating. Your recognition will make us more confident to develop our business and serve you better.

    If you are not satisfied by any reason, please feel free to contact us through AliExpress message center before leaving negative feedback. Our customer service and tech support will do our best to offer you a proper solution.


    ※ 옵션입력창이 없을경우 배송시메모란에 기재하시면 됩니다.
    • Unit Type: piece
    • Package Weight: 8.0kg (17.64lb.)
    • Package Size: 36cm x 30cm x 25cm (14.17in x 11.81in x 9.84in)
