[yellow]정품 핸디 아기 4D / 48분의 46 칩 플러스 G 칩 복사 기능 인증에 대한 V8.1.0 자동차 키 복사 자동차 키 프로그래머를 핸드 헬드
    판매가격 : 0 원
    상품번호 :313308
    적립금액 :배송완료후 2%적립 [후기작성시 1%추가적립]
    상품상태 :신상품
    원산지명 :중국
    제조업체 :by OEM
    Color_Language :
    총 금액 :



    * 위의 탭에서 언어를 선택하시면 원본 또는 번역된 내용을 보실수 있습니다.*
                 inch         =  cm               파운드(lb)  =  킬로그램(kg)

    상품상세정보
    • Electronic: No
    • Brand Name: kingbolen
    • Item Length: 20
    • Item Width: 10
    • External Testing Certification: CE
    • Item Type: Auto Key Programmer
    • Material Type: Plastic
    • Software Version: NEW
    • Hardware Version: NEW
    • Model Name: Handy Baby
    • Voltage: 12V
    • Item Height: 10
    • Item Weight: 0.5
    • Power: 9W
    • Special 상세정보: By cable
    • Product Name: Handy Baby with G Chip
    • Warranty: One year free warranty
    • Delivery time : One working day after payment
    • Shipment: DHL, UPS, FEDEX, EMS, etc.
    • Material Type : Plastic
    • Special 상세정보: Auto key programmer
    번역및 기능문의는 고객센터(070-8748-4219) 이용하세요.

    _03



    Item Pictures



    Gray Color:

    960_01

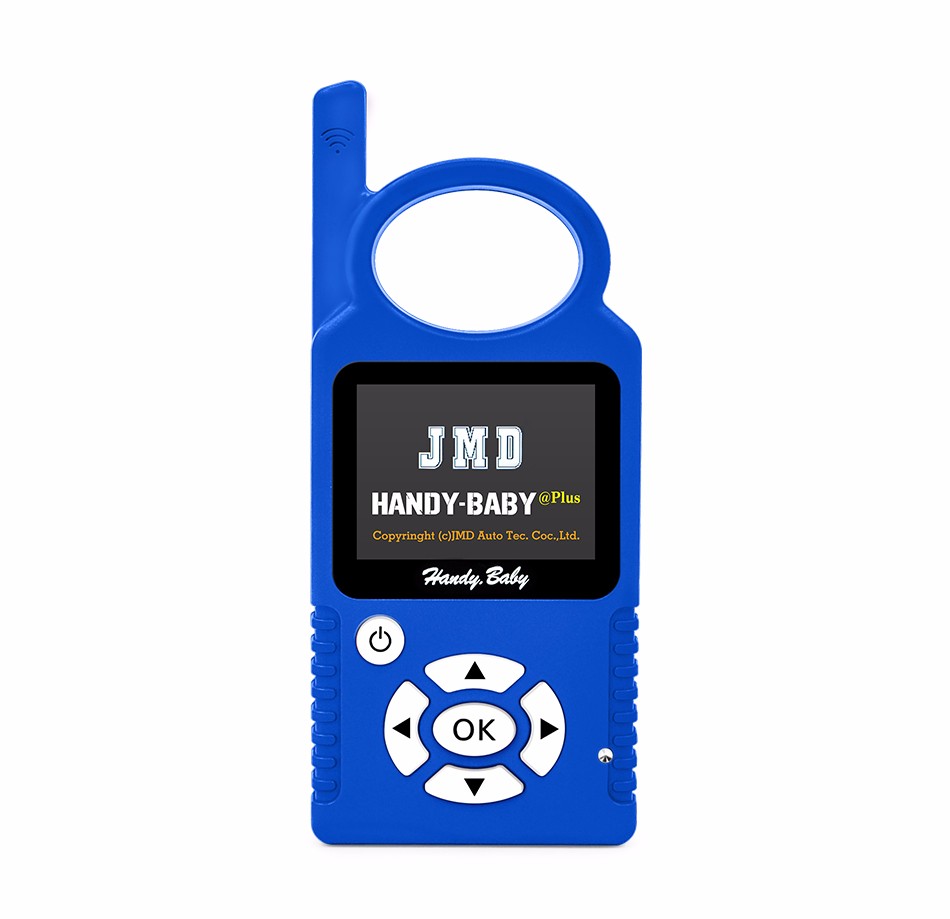

    Blue Color:



    handy baby (1)

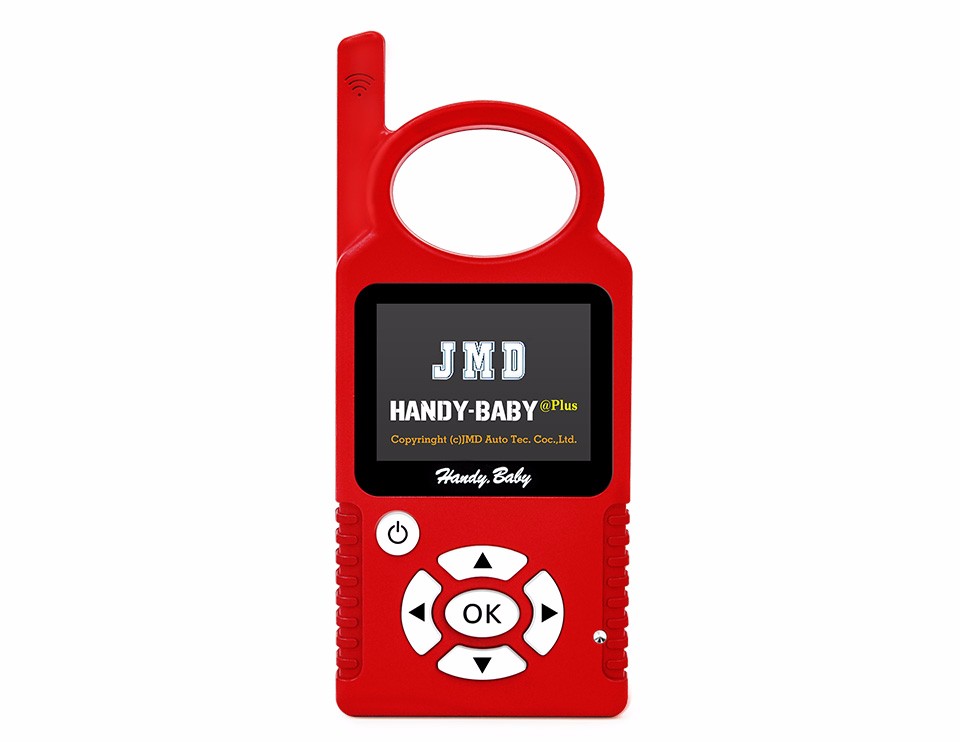

    Red Color:

    hany baby (1)

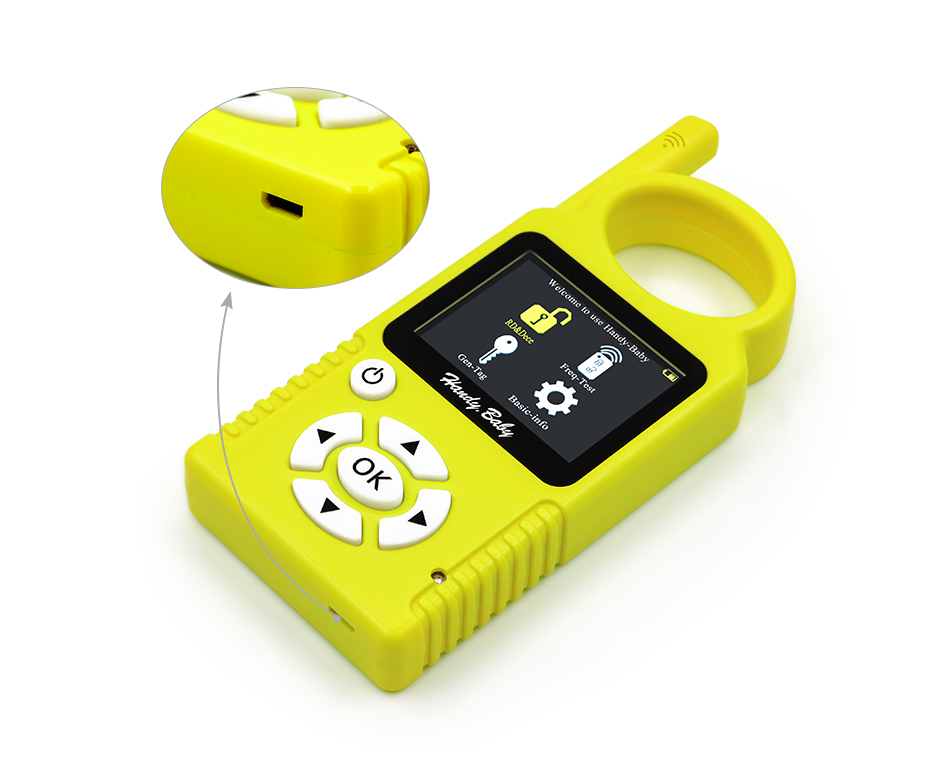

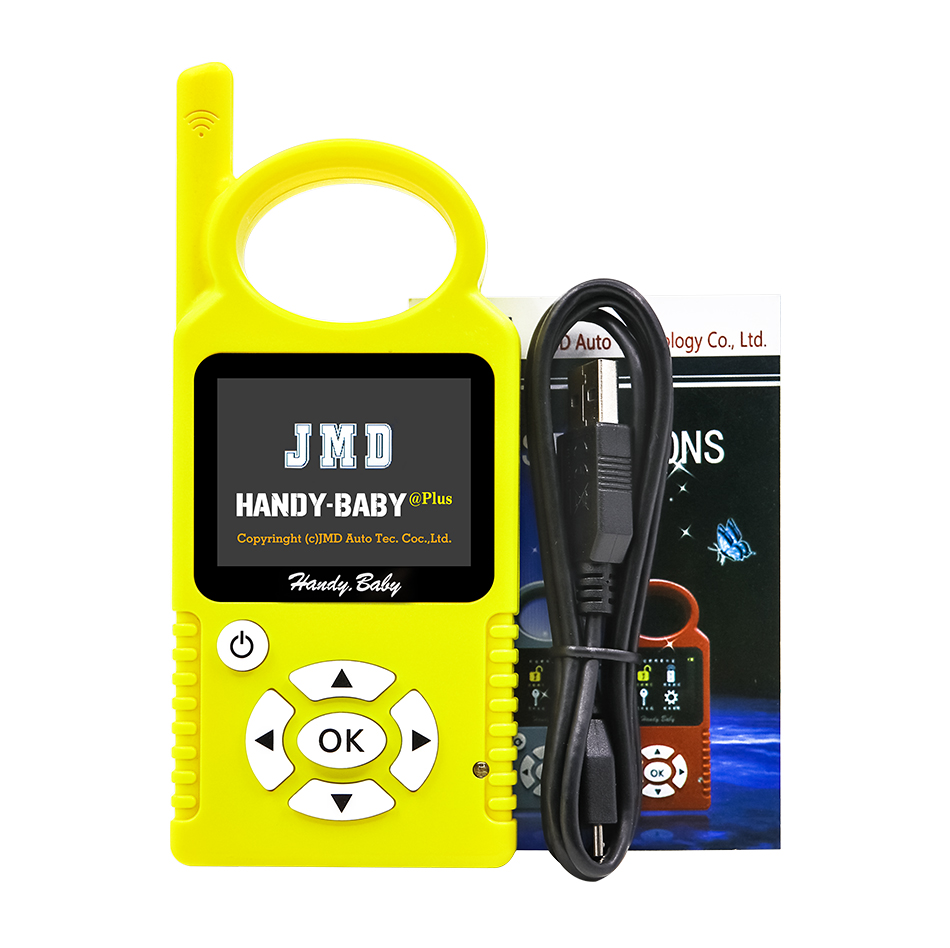

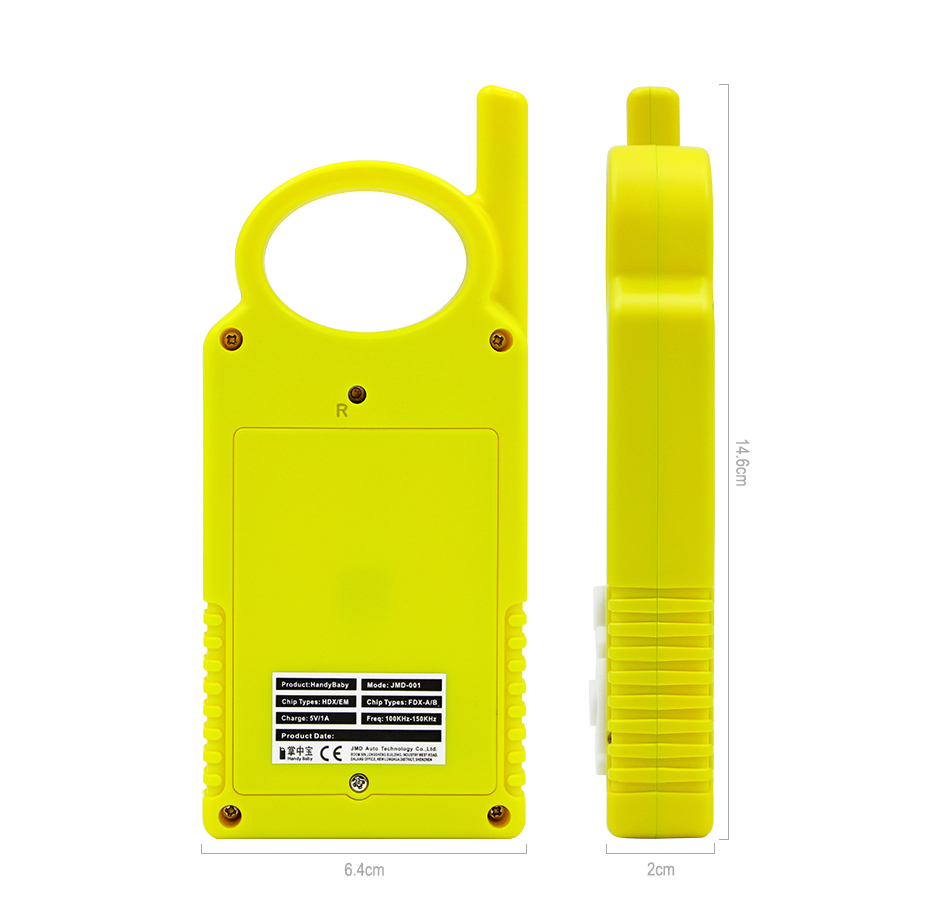

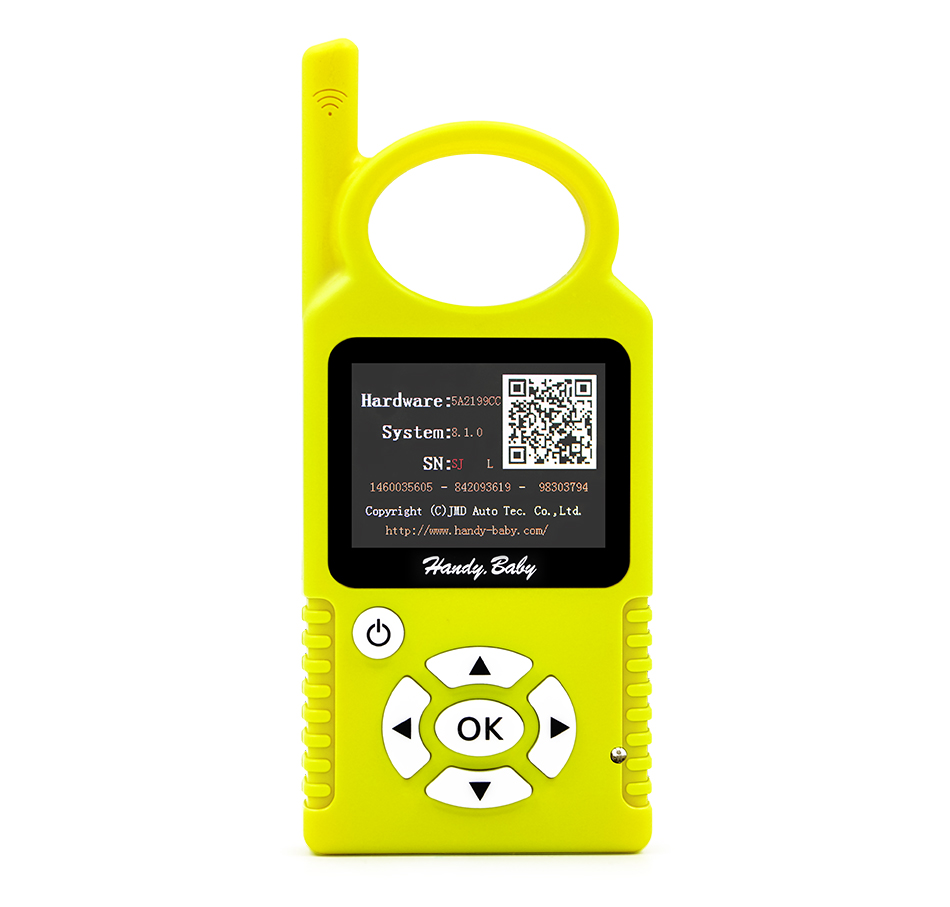

    Yellow color:

    handy baby (2)handy baby (3)handy baby (5)handy baby (6)handy baby (8)handy baby (7)handy baby (9)



    Item Description





    Handy Baby Hand-held Car Key Copy Auto Key Programmer for 4D/46/48 Chips Update Free Online With Operational G Function





    1. Latest Version: V8.1.0
    2. Language: English, Russian,Spanish, Chinese
    3. This Device can\'t work together with CN1 or  CN2 Chip
    4. Update Free Online on Offcial Website
    5. Handy Baby has red, blue and grey color for choice.
    6. The Handy Baby G Function need to work with G Chip together, we can send you 1pc G Chip as gift. but if you need more, pls buy it in our store: //
    7. If you need Handy baby without G function, please check it here :

    handy baby (2)



    NOTE:  Handy Baby Key Programmer has  G Function opened  inside already

    Key Copy Programmer Recognize and Copy:

    Recognize: Recognize chip 13, 40/41/42/44/45, 4C/46/48, 4D61/62/63/67/68/68+/71. Able to tell if 48 chip is from original or deputy factory.
    Copy: Copy 46, 4D and a partial of original 48 I.E B-uick E-xcelle, you have to use special GMT46/4D Chips, ID48 chips which can change ID.


    Operation steps:

    Turn on: long press the "On" button.
    Turn off: long press the "On / off" button or "On / off" and "OK" button
    Steps to operate: follow the tips on the screen, put the original key into the coil, press "OK" to recognize.

    Take chip 46, 4D and 48 for example.

    Steps to copy 46:

    1. Press "OK" to decode
    2. Make antenna close to coil
    3. Insert and turn the key (collection)
    4. Put original key into coil to decode
    5. Put new key into coil to copy

    Steps to copy 4D

    Press "OK" to decode, then put new key into coil to copy.

    Steps to copy 48:

    Press "OK" to decode, then put new key into coil to copy.

    Handy Baby  Key Copy Programmer Initialize:

    Please use with caution: only available for JMD46 / 4D and revisable UID48 chip. The data won’t be restored after the chip erased.
    Enter program, select the chip type, press "OK" to restore to factory settings.

    Handy Baby Key Copy Programmer Test Frequency:

    Steps to test the key remote frequency: Enter program, make key close to the surface of left button, meanwhile press remote button, then the frequency will display.

    Handy Baby Key Copy Programmer Data read and write:

    1) Read and write 46 chip

    1. Please select correct chip mode and password in order to read & write chip correctly. The device default chip mode and password is 46 chip blank.
    2. Select chip mode: move mouse cursor to "Mode", I.E "Plaintext mode", press "OK", the fonts turn black from white to indicate the selection mode, press "Up" and "Down" to select the Plaintext mode or password mode.
    3. Enter password: move cursor to the password box under the mode, press "OK" to proceed, press "Up" and "Down" to select the data (0`F), press "Left" and "Right" to transfer password.
    4. After finish press "OK"to exit, then move cursor to "Read all" to read out data.
    5. Read all: read out all data for 46 chip and display the status of locked or unlocked.
    6. Write: write the corresponding data; make sure 46 unlocked before writing data.
    7. Enter data: the way to enter data is as the same as to enter password.

    2) Read and write 48 chip

    1. Read: read out 48 chip UID, user 1 and user 2 data, and display 48 chip type as well as the status of locked or unlocked.
    2. Write: write the corresponding area data; make sure 48 unlocked before writing data.
    3. Enter data: move cursor to the data input box, press "OK" to proceed, press "Up" and "Down" to select the data (0`F), press "Left" and "Right" to transfer password. After finish press "OK" button to exit, move cursor to "Write" to write data.
    4. Unlock:  if the chip is locked, then it needs to be unlocked before writing into data.
    5. Steps: when the chip is read out locked, please enter PIN code which is the code of 48 chip, move cursor to "Unlock", press "OK" to unlock.

    3) Read and write 4D chip

    1. Read: read out 4D chip password, recognition and ID data, also display their status of unlocked or locked.
    2. Enter data: move cursor to the data input box, press "OK" button to proceed, press "Up" and "Down" to select the data (0`F), press "Left" and "Right" to transfer password. After finish press "OK" to exit, move cursor to "Write" to write data.
    3. Write: write the corresponding area data; make sure 4D unlocked before writing data.
    4. Lock: lock the corresponding area, note: it is unable to unlock after locked.
    5. Car ignition check: enter the verification code, then it will return corresponding signature.

    4. Other chips

    Able to recognize chip 13,40/41/42/44/45,4C/46/48,4D61/62/63/67/68/68+/71
    Able to use T5575,em4305 and the compatible cards to copy 13 chip.

    5. Generate chip

    Chip 67 and 68: need the unlocked 4D chip to generate.
    S-pecialized 48 chip: able to generate chip for only Seattle TA, VW TA, Skoda TA, Audi TA, SEAT TP, VW TP, Skoda TP, Audi TP and Jetta

    Handy Baby Update Steps:
    handy baby (1)

    Handy Baby Software Display:

    handy baby (2)

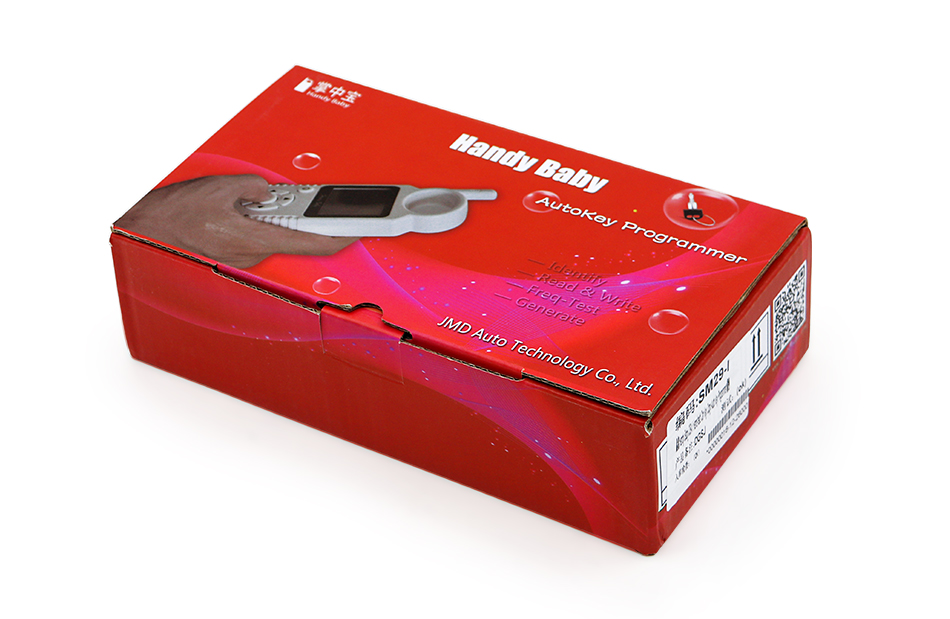

    Package including:

    1pc x Handy Baby Hand-held Car Key Copy Key Programmer for 4D/46/48 Chips














    ※ 옵션입력창이 없을경우 배송시메모란에 기재하시면 됩니다.
    • Unit Type: piece
    • Package Weight: 0.5kg (1.10lb.)
    • Package Size: 5cm x 10cm x 10cm (1.97in x 3.94in x 3.94in)
