Free Shipping! 19 Inch Multi touch foil, Dual Multi Touch Film
Capacitive Touch Foil Working Principal

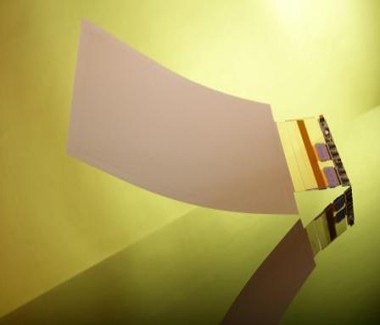

interactive touch foil will Quickly enable a touch screen in your ordinary glass world. 's large format flexible touch panel, cover from 30 to has 3 key parts. 1st is film sensor, 2nd is electronics controller, we call it eBoard, 3rd is driver. Film sensor is a green technology product, has high transparency, light and thin. the embedded nano wire grid is a sensor network, that can precisely positioning hands touch action. It use sensing technology, easily change an to bulletproof touch screen. eBoard use SoC architecture, so the PCB is small and strong noise filtering algorithm, It can detect weak signal that caused by hands.
Driver support Windows XP/7/8, include 32 bit and 64 bit. sion, Mac OSX, Android 4.0 up version.
It has two version, one is cling film version, it designed for interactive window and could be peeledoff for reusing. Another is permanent version, once you peel off the cover layer and laminate onto the glass, the sensor will be permanently fixed.
Super advantages for 19 inch 2 points capacitive touch foil :
1. Projected Capacitance Touch Foil Technology 2. Works on glass up to 20mmthickness 3. Easy to use or install, and Simple to set up for touch foil 4.Durable flexible touch foil, very light and thin touch foil 5.Perfect dual-touch, Quick touch response speed 6. Fixing options: removable and permanent, Can be permanent or replaceable 7. Can be attached to almost every surface: Shop window, Glass, Acrylic and Rear projection film and any other non-metallic material 8. Available Size: from 30 to 180 inches sheets, bigger available on request
The Interactive Touch Foil 상세정보 Safety and robust Antiscratch, laminate on the back of Waterproof, dustproof, bulletproof, No expose components, safety. No mechanical components with long life Industrial temperature range: -20 °C to +
Art and SciFi High transparency ≥93%, glasslevel transparency No bezel of touch area Thin and light, the sensor thickness only 0.17mm Thruglass touch, the maximum thickness of glass can reach 20mm. Only hands valid, no touch action of metal, plastic, and so on.
Excellent experience Zero pressure touch, even with glove. Mouse function with Zoom in/out and rotation. 2 points Multitouch, Support TUIO & Win Native Precise touch & realtime response
Advanced features Low power consumption, the maximu consumption is only 0.5w Flexible, could be applied to curve surface screen The film sensor could be laminated on any smooth nonmetallic flat Various size from 17" to 100", lowest cost customization.
laminate on the back of glass waterproof, Acidproof long life 0 °C to +80 °C level Thin and light, the sensor thickness only 0.17mm glass touch, the maximum thickness of glass nly hands valid, no touch action of metal, plastic, Zero pressure touch, even with glove. Mouse function with Zoom in/out and rotation. touch, Support TUIO & Win Native
minimum power Flexible, could be applied to curve surface touch The film sensor could be laminated on any smooth 0", lowest cost
Interactive touch foil more specification:
The improved projected sensing technology, criss-cross X, Y nanowires constitute sensing matrix
17"~120"can be customized
No drift, the deviation is about 1~3mm
Induction thickness (penetration)
Adjusted by software to adapt to various thickness of glass, even wear gloves to produce touch-sensitive, can penetrate non-metallic materials about the thickness of 20 mm (middle to allow air layer), the induction can even penetrate glass thickness aboutof 25mm
USB 2.0 (HID public interface to USB Mini B interface)
WIN7/WIN8/Linux (Ubuntu 12.04.4,kernel version:3.11.0-15-generic) / Android4.2 or above ( kernel veersion>A20->3.3.0,RK3188->3.0.36) etc.
0% RH to 95% RH (without condensation neighborhood)
1. Shop/Store window displays 2. Indoor and outdoor kiosks 3. Glass partitions 4. Corporate offices 5. Training and meeting rooms 6. Exhibitions and conferences 7.Museums and visitor attractions
After sale service & promise:
1.supply oem&odm order,independent Q.C department ,3 times of quality checking,
2.100% percent of pass before shipping
3.one year of warranty
4.IS09001 ,CE,FCC,RoHs certification
Shenzhen Xintai touch Technology Group is specialized in producing Interactive Projection touch foil/film through-glass, Surface Acoustic Wave(SAW) touch screen, WaterProof SAW Touchscreen, Dustproof SAW Touch Screen, Anti-glare, Vandal-proof SAW Touch Screen, Vandal-proof SAW TOUCH SCREEN, Multi-touch Infrared touch screen/IR Touch frame, LCD Touch Kiosk, Interactive touch foil, resistive touch screen, Touch LCD Monitor, LCD touch Panel PC/ 컴-퓨터 / bezel Monitor, Touch Tablet PC, Optical touch screen and Capacitive touch screen, Any size of touch panel we can customized for you. Just let us know the requirement. For Multi-touch IR Panel, we can offer Dual-touch(2 points), 6 points, 8 points, 10 points, 16 points and 32 points, No ghost point. etc.

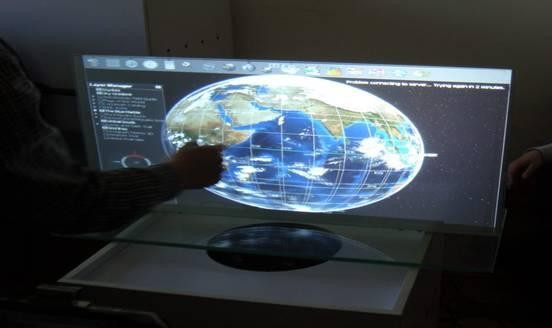

Shenzhen Xintai touch Interactive Touch Foils are supplied with an electrostatic cling layer which makes them suitable for both permanent and temporary installations. The new improved touch foil have an upgraded driver with USB connection which has been digitally signed off by Microsoft (EMC approved) and are UL, FCC and CE approved (RoHS compliant). The Interactive Foils are combined with a screen technology to create an interactive touch screen display. Our main market for the Touch foils is 'thru-glass' interactive displays for store window applications, where the foil is combined with our range of projection films and high brightness LCD TFT screens. Such as interactive shop windows, trade shows, museums, meeting rooms and much more.
